VES-ARTEX Circulator Fans

In industrial applications, our fan's air pattern covers over 6000 square

feet of floor area and can be used on high ceilings up to 40'.

​

Fans with belt drive motors are available in sizes 55” and 72”. Fans with direct drive motors are available in sizes 36”, 55’, and 72”. All direct drive motors are enclosed with sealed bearings.



​

Our fans positioned over shipping doors can create an air curtain to keep cold air out in the winter and hot air out in the Summer. Unlike traditional ceiling fans that slowly push air in a 360 degree radius, the 72" Cyclone can direct the air pattern where you need it the most. Run our fans on high speed to efficiently cool employees and machinery during hot conditions.

​

​

Ask us about agricultural buildings, greenhouses, processing plants, and stadium applications too!

FEATURES:

VES AIR Ciruclator fan

  • Corrosion resistant fiberglass housing.

  • Heavy duty pulley and bearing assembly

  • Maintenance free motor

  • Can be mounted on a steel post, column, or suspended from the ceiling

  • Optional variable frequency drive

  • 6 directional air flow deflectors

  • Balanced 72" heavy duty corrosion resistant 6 paddle aluminum blade

  • Shipped fully assembled (except air foil deflectors)

  • Can reduce

Ves Air Circulator fan

TECHNICAL SPECIFICATIONS:

  • Weight: 375 lbs. fully assembled

  • Motor is 3 HP or 2.2kw on high and .3kw on low 230/460 VAC

  • Belt drive runs 300 RPM on high and 50 RPM on low.

  • Throws air 100' on both sides for a total floor coverage of 200' x 35'

  • Optional variable frequency drive

  • Blade is 72" diameter 6 paddle

High Volume - HAF/HVB Fans

High Volume HVB Basket Fan:

The new HVB series industrial / agricultural is designed to be the most powerful and efficient basket fans of its type in the market today. This fan is designed for the harshest environments, maximum performance and efficiency. use this fan where high performance air movement is a must.

APPLICATIONS:


  • Animal cooling

  • Individual cooling in warehouses, loading docks, and factories

  • Circulates air in enclosed buildings and greenhouses

  • Aids in insect control when air velocity reaches 300 FPM

  • Moving air in shipping trucks and cargo containers when loading and unloading

  • Creates a high velocity air curtain

  • Cooling of machines and compressors

  • Surface drying for wet floors and animal bedding

  • Provides stress relief inside and out

  •  Air de-stratification in buildings to reduce heating and cooling costs.

HBV basket fan
HBV basket fan

SPECIFICATIONS:

​

  • HVB12110C: 12" Diameter, DD, 1/10 HP, 115v, 1 amp, 1725 RPM, 2500 CFM, 22 lbs w/ 9' cord

  • HVB2013C: 20" Diameter, DD, 1/3 HP, 115v, 3.5 amps, 1725 RPM, 6400 CFM, 37 lbs. w/ 9' cord

  • HVB2412C: 24" Diameter, DD, 1/2 HP, 115v, 4.8 amps, 1725 RPM, 8800 CFM, 47 lbs. w/ 9' cord

  • HVB3612: 36" Diameter, DD, 1/2 HP, 115/230v, 6.0/3.0 amps, 825 RPM, 14000 CFM, 74 lbs.

  • HVB36123P: 36" Diameter, DD, 1/2 HP, 230/460v, 3.0/1.5 amps, 825 RPM, 14000 CFM, 74 lbs.

Legend OSHA High Volume HAF Basket Fan:

The new Legend Series OSHA High Volume HAF basket Fan is designed to create a high velocity air pattern at a low cost. the OSHA intake and exhaust guard can be mounted at any height. This fan is designed for the harshest horticultural, agricultural, and industrial environments. Has an optional 9' cord for "no electrician required" installation.

IDEAL APPLICATIONS:


  • Exceptional air velocity is ideal for animal cooling in dairy or corrosion resistant environments like swine and poultry.

  • People cooling in factories, warehouses and sporting venues.

  • Air de-stratification in buildings can reduce heating and cooling costs by up to 35%.

  • Creat a consistant air temperature in buildings or greeenhouses.

  • Insect control when creating a velocity of 300 ft. per minute.

  • Create an air exchange when placed in a wall.

  • Used to change the air in shipping trucks and containers when loading or unloading.

  • High velocity air pattern can develop an air curtain.

  • Machine and compressor cooling.

  • Surface drying for wet floors and animal bedding.

  • Heat stress relief inside and outside.

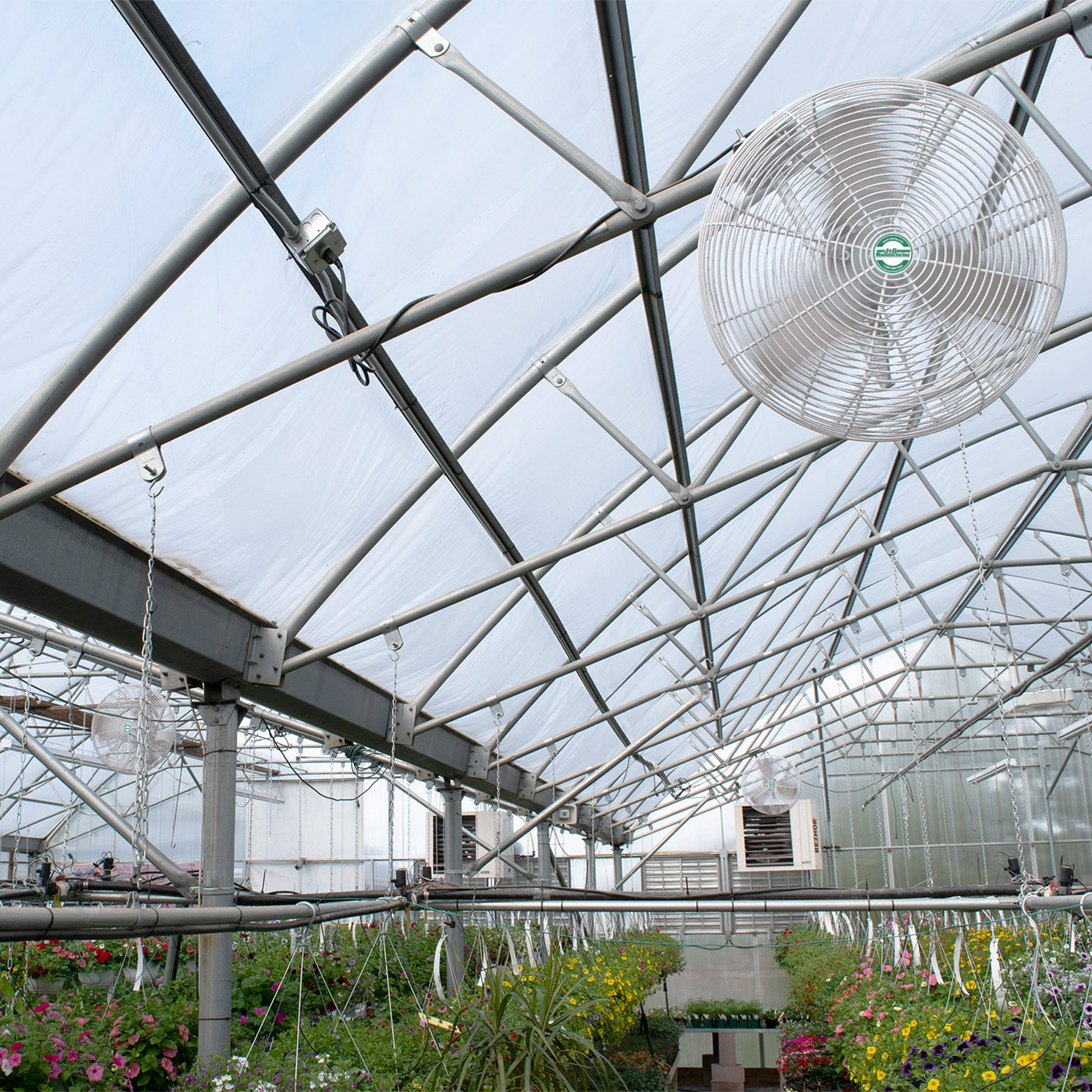

HAF Basket fan
HAF basket fan

Features

  • Standard OSHA safety guards on intake and exhaust.

  • Versatile wall and ceiling mount pivots 180 degrees and fan can turn 360 degrees.

  • Motors are totally enclosed, high efficiency with sealed ball bearings.

  • Most powerful basket fans in the market today based upon size and HP.

  • Well balanced and strong blade design for years of trouble free service.

  • Polyester powder coated guards for corrosion resistance.

  • Designed for optimal air throw and coverage.

  • Industry leading fan efficiency, up to 26 CFM / watt.

  • Easy to clean.

  • Some assembly required.

SPECIFICATIONS:

​

  • HAF2013:, 20" diameter, DD, 1/3 HP, 115/230v, 3.5/1.7 amps, 1725 RPM, 6200/2170 CFM, 350 FPM @ 50', 100 FPM @ 100'



  • HAF2013C: 20" diameter, DD, 1/3 HP, 115v, 3.5 amps, 1725 RPM, 6200/2170 CFM, 350 FPM @ 50', 100FPM @ 100 ' (with cord).



  • HAF2412: 24" diameter, DD, 1/2 HP, 115/230v, 4.8/2.4 amps, 1725 RPM, 8600/3010 CFM, 450 FPM @ 50', 150 FPM @ 100'



  • HAF2412C: 24" diameter, DD, 1/2 HP, 115v, 4.8 amps, 1725 RPM, 8600/3010 CFM, 450 FPM @ 50', 150 FPM @ 100' 9(with cord).



  • HAF3012: 30" diameter, DD, 1/2 HP, 115/230v, 6.0/3.0 amps, 850 RPM, 10200/3570 CFM, 450FPM @ 50', 150 fpm @ 100'



  • HAF3012C: 30" diameter, DD, 1/2 HP, 115v, 6.0 amps, 850 RPM, 10200/3570 CFM, 450 FPM @ 50', 150 FPM @ 100' (with cord).

Ready to Get Your Air Moving in the Right Direction?

Our experts are ready to help you find the right solution to solve your facilities problems and save you money and energy.
