ALTRA AIR Sailfin Fans


The Altra Air fan Sailfin fan is used to destratify air in airplane hangers, warehouses, hockey rinks, shopping malls, distribution centers, office buildings, dairy farms or any buildings with high ceilings. Destratification means drawing the warm air off the ceiling and reusing it at our comfort level which creates a 35% energy savings. The Altra-Air Sailfin fan can greatly improve the working environment for employees by modulating- "evening out"- the ambient working temperature. By increasing the speed on this fan, a cooling effect is created during the hot days of Summer which can drop air conditioning cost substantially.

The Sailfin Advantage:
Now Tested to AMCA Standards
-
The Greenest HVLS ceiling fan on the market today
-
Exceptional destratification & cooling
-
Up to 5.65 mph breeze
-
Maximum 5.7 amp draw
-
264 CFM / watt
-
Minimal 2.5" blade flex
-
53 rpm at full speed
-
Up to 23 degree angle of atttack
-
Fans payback on average in 2 years
-
5 blades for less drag
-
Less expensive to operate
-
Up to 40% reduction in energy costs
-
Lower decibel level
-
Custom designs & colors

Envira-North Systems Ltd. has launched the latest and most efficient technology available for the large industrial HVLS ceiling fan market.
The Altra-Air Sailfin variable pitch, modulated trailing edge airfoil removes the inefficiencies created by differentiating rotational HVLS fan speeds. Simply put- a faster tip speed requires less surface area and less angle of attack to produce airflow. While a slower hub speed requires more surface area and more angle of attack to produce airflow. The evenly spread deflection creates less disruption in the trailing air stream, producing cleaner air for the following airfoil, less blade flex in the alternating blade assembly and lowers unwanted ( and expensive ) operating load.
All this adds up to greater air speed velocities with less noise created and less money spent operating....not to mention one sleek looking design!.

Fan Specifications:
-
WA675X5002: 8 ft dia., 1 HP, 208/230/460 v, 42136 CFM, 214 lbs., 61 dbs., 35 ft. effective radius
-
WA675X5006: 12 ft. dia., 1 HP, 208/230/460 v, 70424 CFM, 235 lbs., 58 dbs, 80 ft. eff. radius
-
WA675X5010: 16 ft. dia., 1.5 HP, 208/230/460 v, 127033 CFM, 251 lbs., 63 dbs, 140 ft. eff. radius
-
WA675X5014: 20 ft. dia., 2 HP, 208/230/460 v, 176200 CFM, 320 lbs., 68 dbs, 200 ft. eff. radius
-
WA675X5016: 24 ft. dia., 2 HP, 208/230/460 v, 315026 CFM, 347 lbs., 63 dbs, 230 ft. eff.radius

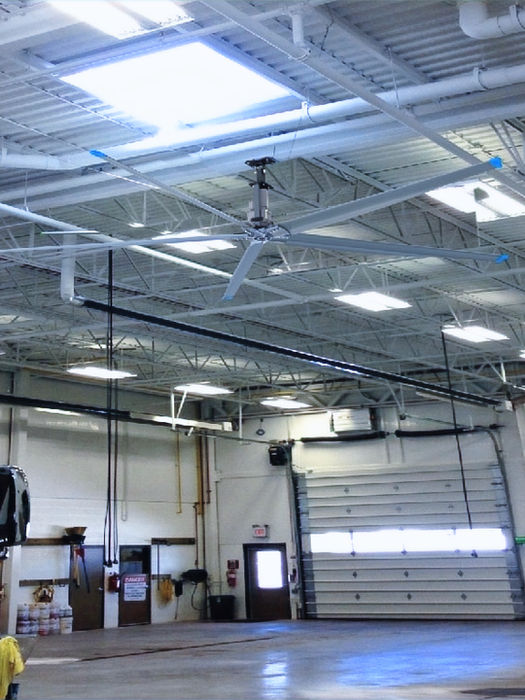

SAILFIN FAN USED IN A WAREHOUSE

SAILFIN FAN USED IN A CATTLE BARN


Mounting options
-
HRS400X2001: UMH Heavy duty pivoting mount w/ standard 8" plates and 1 ft. drop rod
-
HRS400X2002: UMH Heavy duty pivoting mount w/ standard 8" plates and 2 ft. drop rod
-
HRS400X2004: UMH Heavy duty pivoting mount w/ standard 8" plates and 4 ft. drop rod
-
HRS405X1002: 2' packaged extension mount- powder coated
-
HRS405X1004: 4' packaged extension mount- powder coated
*Custom options are also available
Zone Air VFD Speed Control with LVC and TFD-1 options:
-
HRS300X0222: VFD fan control, 1.0 HP, 208-230v with hub plate and wiring harness
-
HRS300X0224: VFD fan control, 1.5 HP, 208-230v with hub plate and wiring harness
-
HRS300X0226: VFD fan control, 2.0 HP, 208-230v with hub plate and wiring harness
-
HRS300X0422: VFD fan control, 1.0 HP, 460v with hub plate and wiring harness
-
HRS300X0424: VFD fan control, 1.5 HP, 460v with hub plate and wiring harness
-
HRS300X0426: VFD fan control, 2.0 HP, 460v with hub plate and wiring harness
for use with....
-
HRS300X5001: Low voltage control (to operate up to
7 fans with a single control, used in conjunction with VFD controls)
HRS300X2001: Modulating temperature control
NOW AVAILABLE:
TOUCH AIR: TOUCH SCREEN TECHNOLOGY
SMART AIR TEMPATURE CONTROL
Essential Air VFD Speed Control Options:
-
HRS300X0202: fan control, 1 HP, 208-230 volt, NEMA 4
-
HRS300X0204: fan control, 1.5 HP, 208-230 volt, NEMA 4
-
HRS300X0206: fan control, 2 HP, 208-230 volt, NEMA 4
-
HRS300X0402: fan control, 1 HP, 460 volt, NEMA 4
-
HRS300X0404: fan control, 1.5 HP, 460 volt, NEMA 4
-
HRS300X0406: fan control, 2 HP, 460 volt, NEMA 4
Command Air VFD Speed Control with individual digital wall control:
-
HRS300X2242: VFD fan control, 1.0 HP, 208-230v with hub plate, harness, 100' CAT5 cable and digital wall control
-
HRS300X2244: same as above, 1.5 HP rated
-
HRS300X2246: same as above, 2.0 HP rated
-
HRS300X2442: VFD fan control, 1.0 HP, 460v with hub plate, harness, 100' CAT5 cable and digital wall control
-
HRS300X2444: same as above, 1.5 rated
-
HRS300X2446: same as above, 2.0 rated
ALLURE FANS
These fans are perfect for a variety of different applictations and can be a great addition to your industrial or residential space





Allure60 Fan Specs
-
Brushless DC Motor
-
5 Blades
-
6400 CFM Airflow
-
20 W power consumption
-
6 fan speed
-
Dimmable light
-
Available in black or white
-
Indoor/Outdoor use
-
Remote Controlled
Allure72 Fan Specs
-
Brushless DC Motor
-
5 Blades
-
7900 CFM Airflow
-
25 W power consumption
-
6 fan speed
-
Dimmable light
-
Available in black or white
-
Indoor/Outdoor use
-
Remote Controlled
